GRL 650 CHVG Professional

(0) 0 Reviews 0 Orders 0 Wish listed

Overview
Reviews

GRL 650 CHVG Professional

Rotation Laser

Connected green beam rotary laser for rough conditions and higher visibility

Advanced green beam laser technology delivers higher visibility
Jobsite-ready construction withstands up to 2-m tripod tip-over and meets IP68 dust and water protection standards
Fast job completion thanks to connectivity via the Levelling Remote App

Technical data

Additional data

Battery voltage

18.0 V

Dust and splash protection

IP 68

Working range with receiver

650 m (diameter)

Accuracy

± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical

Tripod thread

2 x 5/8"

Laser diode

< 1 mW, 500 – 540 nm

Operating temperature

-10 – 50 °C

Storage temperature

-20 – 50 °C

Laser class

Working range without receiver

70 m (diameter)

Self-levelling range

±8.5% (±5°)

Rotation speed

150/300/600 min-¹

Power supply

18 V Li-ion battery, 4 x D cell batteries

Operating time (max.)

50 h, 60 h

Projection

1 x 360° line

Compatible laser receivers

LR 65 G

Weight with 4.0 Ah battery

4.3 kg

Weight with alkaline batteries

4.6 kg

Slope function

yes

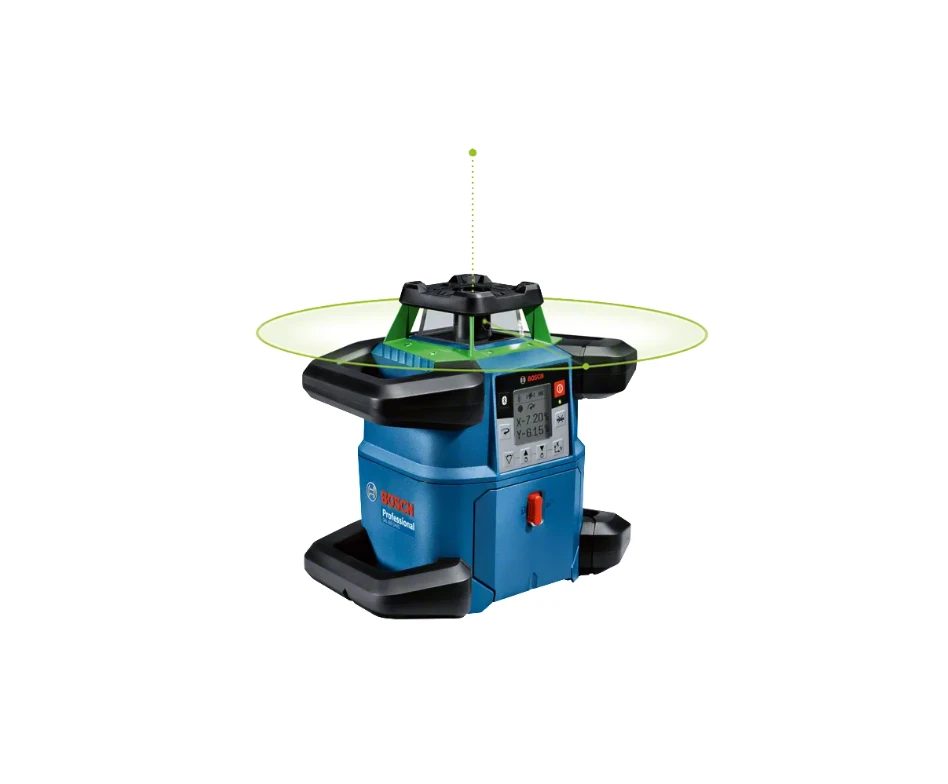

Bosch GRL 650 CHVG laser leveling tool with display.

* You can find more information about the deviations in the following link: Technical features of products

GRL 650 CHVG Professional: Further information

Product Highlights

The robust rotary laser GRL 650 CHVG Professional with Bluetooth® connectivity takes construction site levelling to new heights of precision and efficiency. Green beam technology delivers higher visibility in different lighting conditions. The rotary laser is sturdily built to operate in rough site conditions and bad weather, withstanding up to 2-m tripod tip-over and meeting IP68 dust and water protection standards. Using the Levelling Remote App for settings overview and remote control saves time and allows total focus on the job.

Equipment & Application

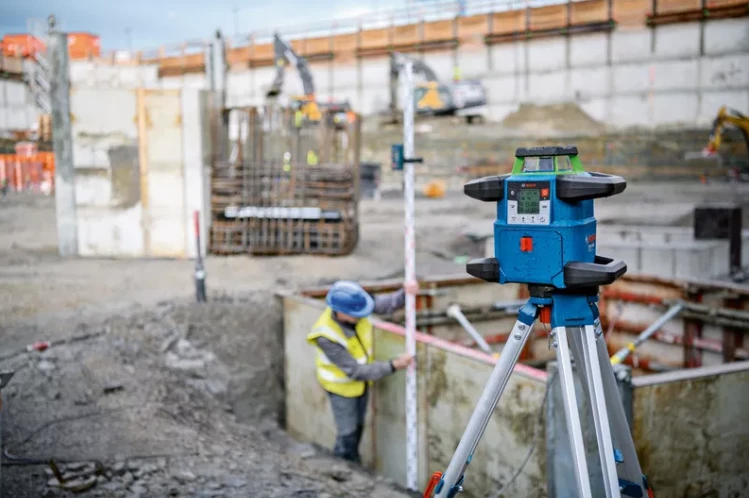

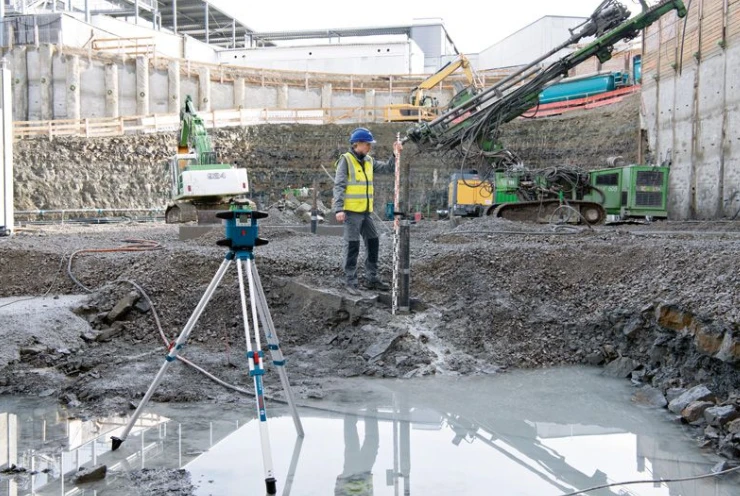

The versatile GRL 650 CHVG Professional is best used on outdoor levelling and grading jobs as well as interior wall, ceiling, and HVAC installation.

Additional Information

Long runtime convenience is provided by a dual-power option that uses Bosch rechargeable 18 V Li-ion or alkaline D-Cell batteries. Optimal convenience thanks to high-tech features such as display, dual slope, slope memory, and high-quality receiver (LR 65 G Professional).
