GTC 400 C Professional

(0) 0 Reviews 0 Orders 0 Wish listed

GTC 400 C Professional

Thermo Camera

12V system
Connected

Immediate visualisation of temperature differences with smart documentation

  • Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
  • Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
  • Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries



Technical data

Additional data

Battery voltage
12.0 V
Measurement range
-10 °C to +400 °C
Measuring accuracy of IR
±3.0 °C
Measuring application
Thermal image
Data transfer
MicroUSB, Wi-Fi
Thermal sensitivity (NETD)
<50 mK
Size of IR sensor
160 Pixel x 120 Pixel
Resolution
0.1 °C
Number of measuring points
19,200
Field of view (FOV)
53° x 43°
Power supply and runtime
4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Frame buffer (number of images)
500
Memory type
Internal memory
File format of image
.jpg
Dust and splash protection
IP 53
Weight
0.54 kg
Size of display
3,5"
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 70 °C
Focus distance, minimum
0.3 m

* You can find more information about the deviations in the following link: Technical features of products

GTC 400 C Professional: Further information

Product Highlights

The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.

Equipment & Application

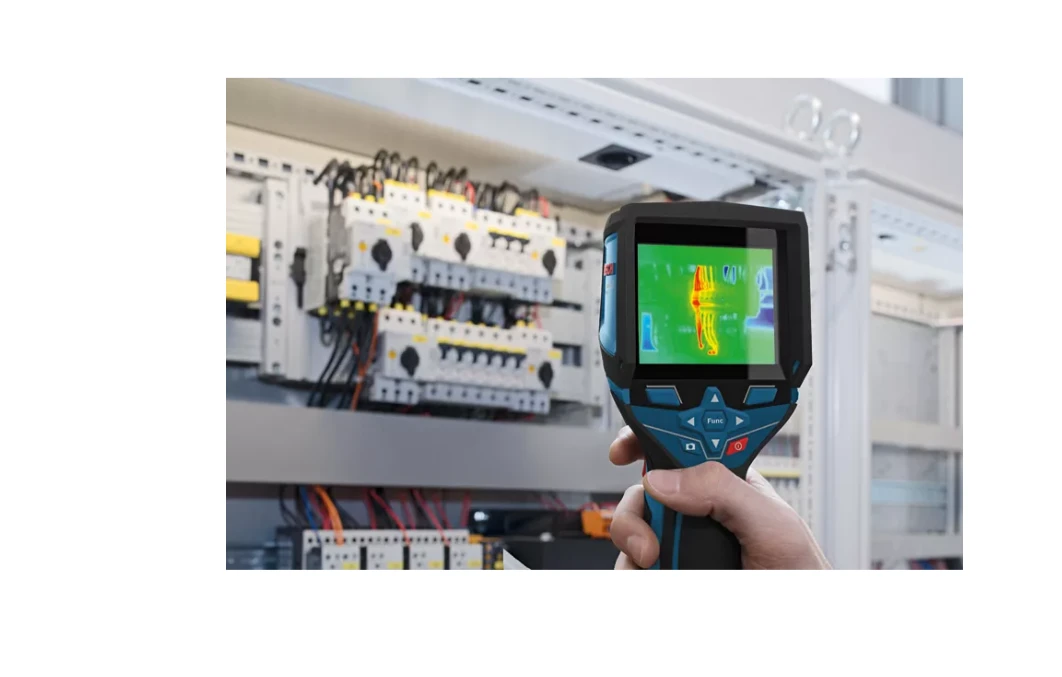

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

Additional Information

The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.
