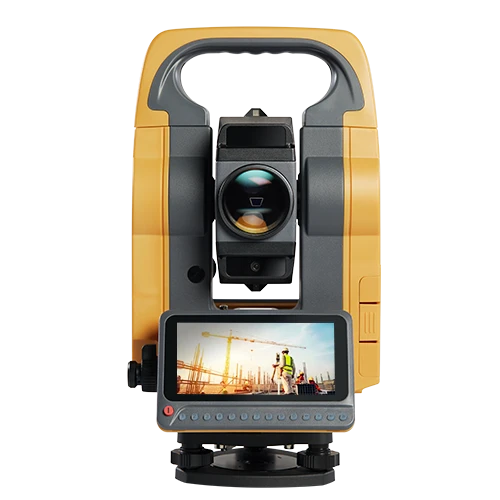

Hi-Target HTS-720 Android Total Station Full Set

Professional Android Total Station for UAE Surveying Projects

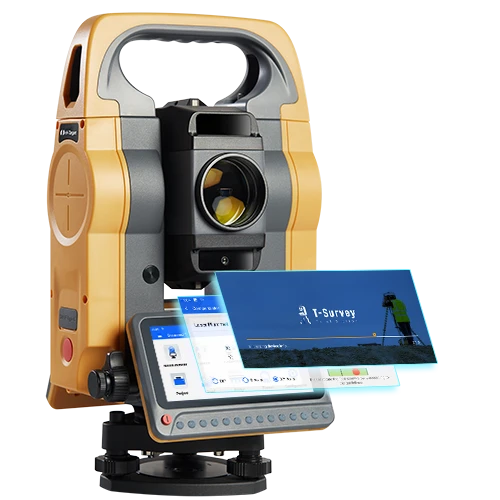

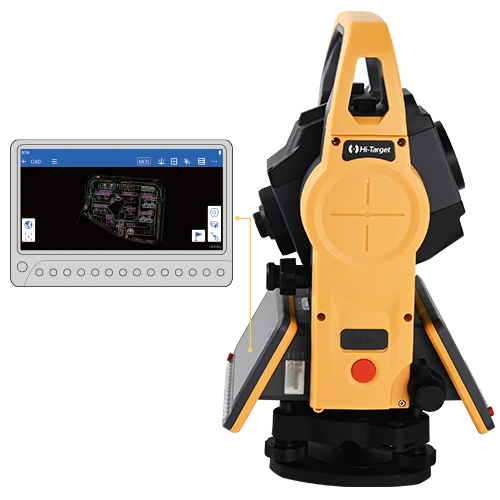

The Hi-Target HTS-720 combines precise angle and distance measurement with an Android workflow designed for modern surveying teams. Its large touch display, integrated camera and CAD stakeout tools make field navigation, point selection and visual documentation faster and easier on construction, infrastructure and engineering sites.

Key Advantages

• 5.5-inch HD touch screen with a clear 720 × 1440 display.

• Android 9 operating system with an octa-core processor, 2 GB RAM and 16 GB storage.

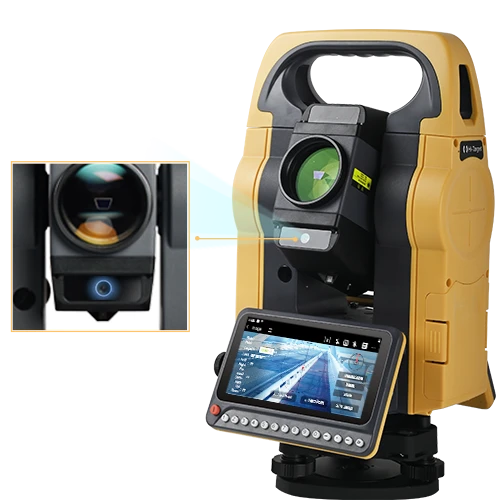

• 8 MP integrated camera for visual stakeout and point documentation.

• Optional 1″ or 2″ angle accuracy with absolute encoding.

• Up to 1000 m reflectorless measurement under suitable target conditions.

• Up to 5000 m with a single prism in general conditions.

• Dual-axis compensation with a ±6′ working range.

• Type-C, TF card, RS232, Wi-Fi and Bluetooth connectivity.

• IP65 protection for demanding outdoor work.

• 6600 mAh rechargeable battery for extended field operation.

Ideal Applications

The HTS-720 is designed for construction layout, topographic surveys, road and infrastructure work, building control, boundary surveys and CAD-based stakeout. The camera-assisted workflow helps surveyors identify points visually and maintain clearer field records.

Full-Set Supply and Local Support

GeoArc supplies the Hi-Target HTS-720 in the UAE with full-set configuration options, delivery, warranty, training and technical support. Package contents can vary, so contact our Abu Dhabi team to confirm the included tripod, prism, pole, accessories and software before ordering.

Contact GeoArc for current availability, UAE pricing and the right HTS-720 configuration for your project.
