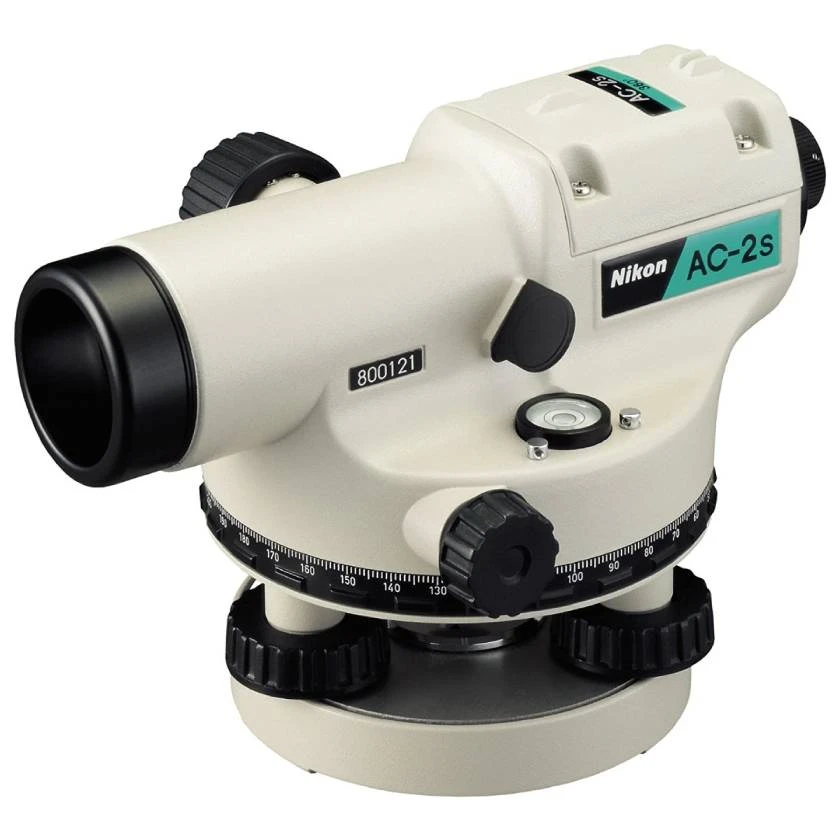

Product Description

The Nikon AC-2S Automatic Level is used to take highly accurate horizontal plane and angle. With 24x magnification, this survey and construction tool is equipped with powerful optics that absorbs more light for brighter and sharper images. It has an accuracy of 1/8 inch at 150 feet and features an internal compensator to level the line of sight, making it perfect for landscaping, pipe laying, installing foundation and more.

World Class Optics

With a minimum focusing distance of 2.46 feet, the AC-2S allows for better performance in tight spots or on steep slopes. This auto level also has a built-in magnetic dampened compensator that levels the line of site within the range of ±16 arc-minutes and an accuracy of 0.5 arc-second. Its detachable eyepiece lets you use a diagonal eyepiece prism (not included) for working in extremely confined spaces.

Easy to Setup and Use

Featuring a large focusing knob and horizontal tangent knobs with unlimited range, surveyors and construction professionals can operate the Nikon AC-2S with either hand to ensure smooth precise pointing and angular measurement. Its horizontal circle is clearly marked 360 degrees and it can be attached to both flat and spherical-head tripods.

Robust Construction

With its rugged and water-resistant construction, you can use the AC-2S auto level in light rain or dusty conditions. It is also compact and lightweight for easy transport.

This Nikon automatic level comes with a hard carrying case, objective lens cap, adjustment tool, vinyl dust cover and 1-year manufacturer’s warranty.

General

Weight	2.9 lbs (1.3 kg)
Warranty	1-year
Tripod Thread	5/8-11
Protection Class	IP52 (protected against dust and rainfall)
Self-Leveling	yes
Units of Measure	Degrees
Distance Measurement
Time	2.46 ft. (0.75 m)
Accuracy
Leveling	1/8 in. at 150 ft. (3.0 mm at 46 m)
Telescope
Magnification	24x
Field of View	2.6 ft. at 100 ft. (1° 30′)
Diameter of Objective	1.2 in. (30 mm)
Features
Bubble Vial	10′ / 2mm
Adjustment Knobs	2
Leveling Screws	yes
Horizontal Circle	360°
Sighting Scope	no
Compensator
Type	Wire-hung, magnetic damper
Accuracy	<0.5”
Range	±16’
