Nikon XF Series 5″ Total Station With Full Accessories

Product Description

Overview for the XF Series Total Station

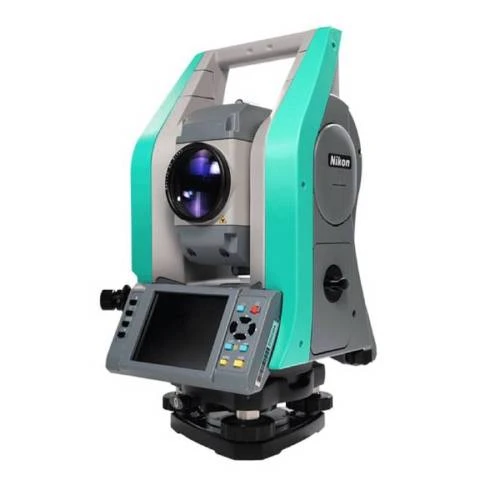

The Nikon XF Series Reflectorless Total Station is equipped with an autofocus and powerful non-prism EDM with a measuring range of up to 2,600 feet. Using a single prism, it increases that range up to 16,400 feet. This surveying equipment features dual-axis compensation with liquid-electric detection for accurate angle measurements. In addition, the integrated superior Nikon optics with 30x magnification provides crisp and bright sightings which reduce eye fatigue.

For easy data transfer and connection with data collectors, this Nikon total station is integrated with a Class 1 Bluetooth that has a range of up to 328 feet. The XF reflectorless total station has a 512 MB RAM and 4 GB flash memory for storage. Plus, it comes with RS-232C and two USB ports that enable a seamless connection with computers for transferring of files. It has PIN security to prevent unauthorized use and is Trimble Locate2Protect ready for effective tracking of lost or stolen equipment.

Featuring dual color touchscreen displays, the XF series allows surveyors and construction professionals to run Survey Basic, Survey Pro, and Layout Pro onboard software (sold separately). This Nikon total station comes with an IP66 protection rating, making it dustproof and water resistant. With its lightweight and compact design, the XF total station is easy to handle, store and transport.

Configuration Options

The Nikon XF Series Reflectorless Total Station offers four accuracies with two choices of plummets. Please select your preference from the drop-down menu above.

• HNA40500: Nikon XF 5 Second Reflectorless Total Station with Optical Plummet
• HNA40505: Nikon XF 5 Second Reflectorless Total Station with Laser Plummet

Features and Benefits

• Angular Accuracy  5″ seconds
• Single-prism range up to 16,404 feet
• Reflectorless range up to 2,600 feet
• Internal 512 MB RAM and 4 GB flash memory
• Integrated Survey Basic, Survey Pro, and Layout Pro (sold separately)
• Built-in Bluetooth connectivity
• Two-year manufacturer’s warranty
• IP66 dustproof and waterjet resistant

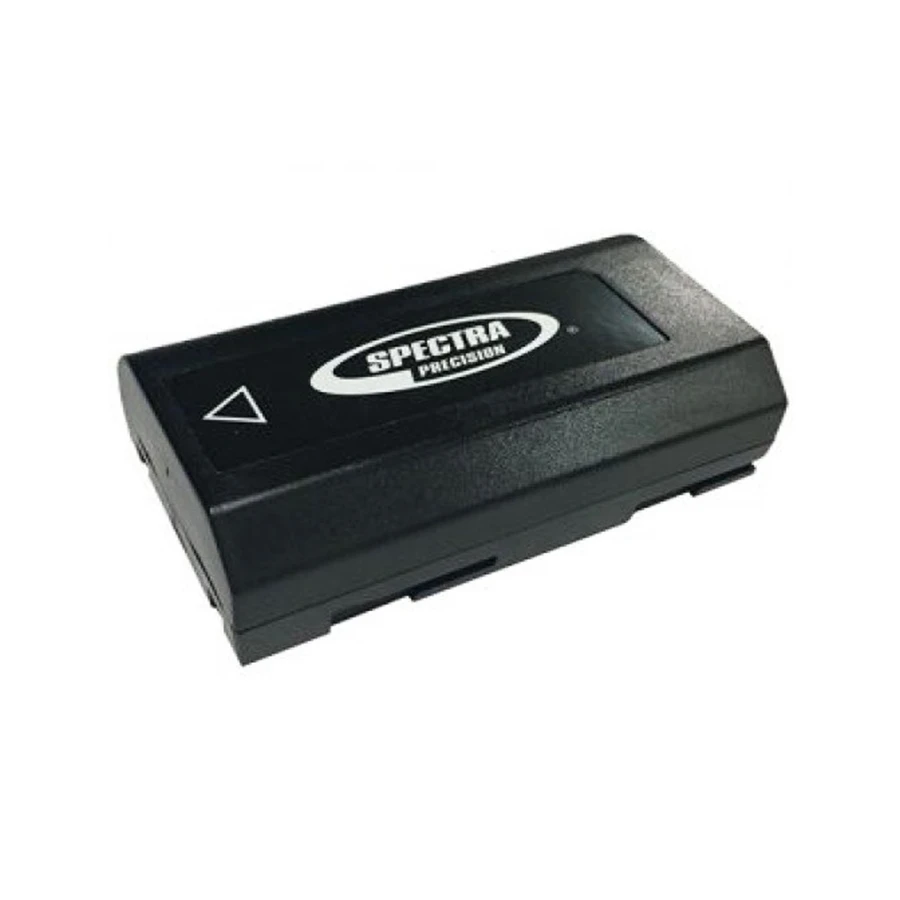

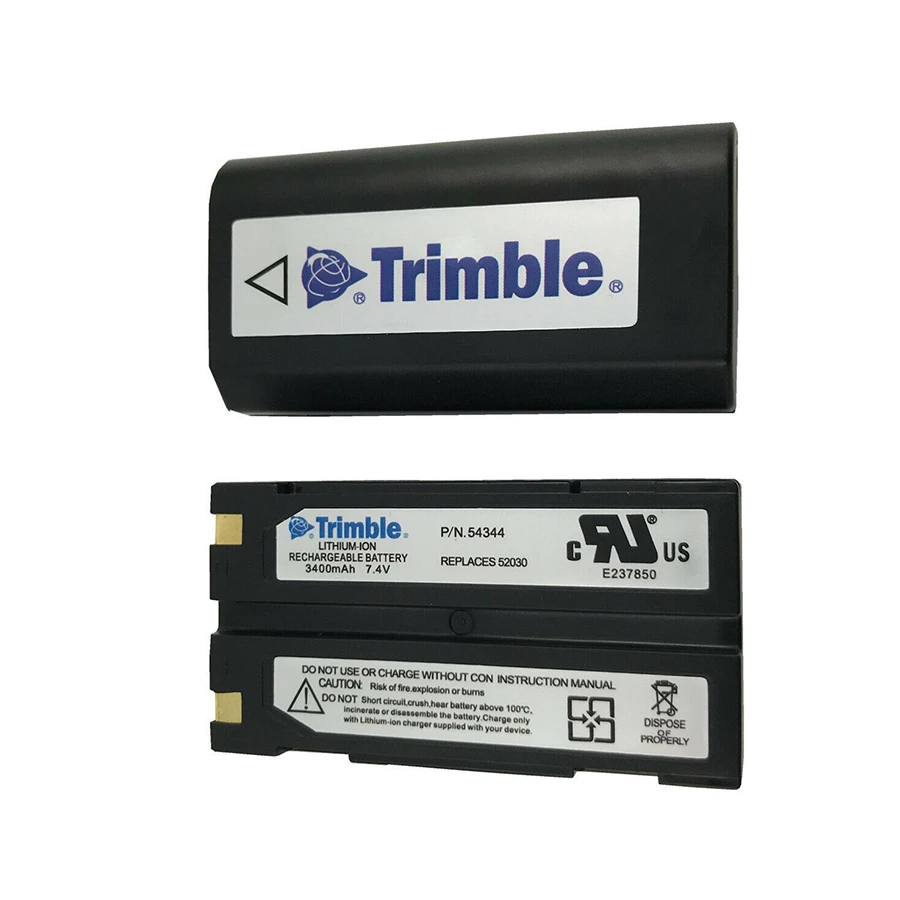

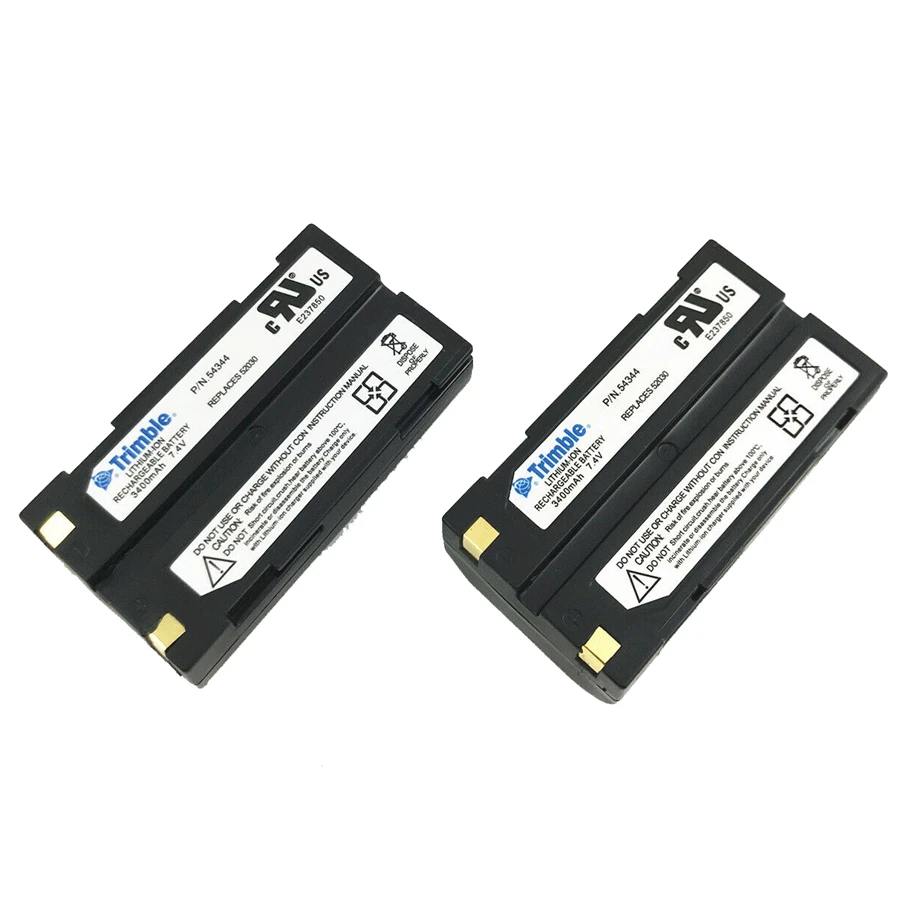

• Up to 14 hours Li-ion battery life
