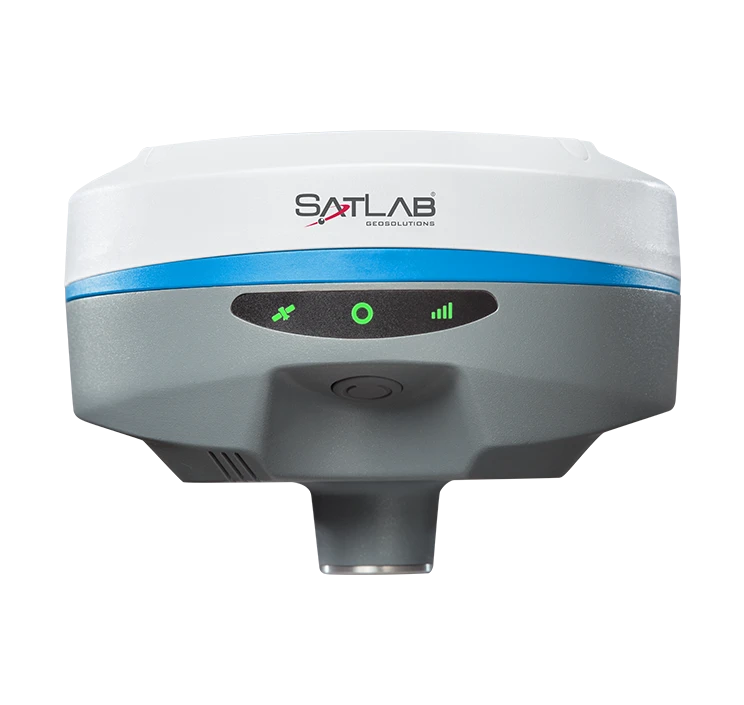

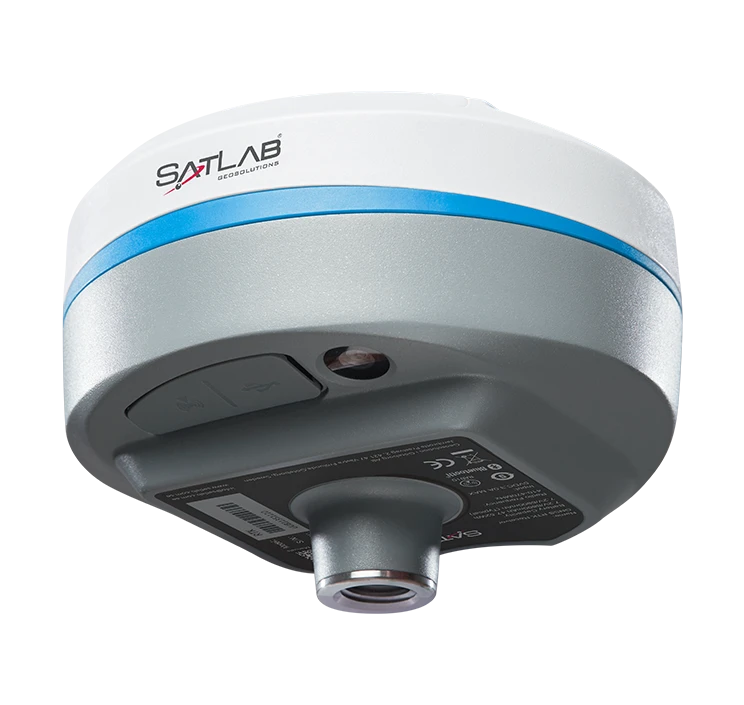

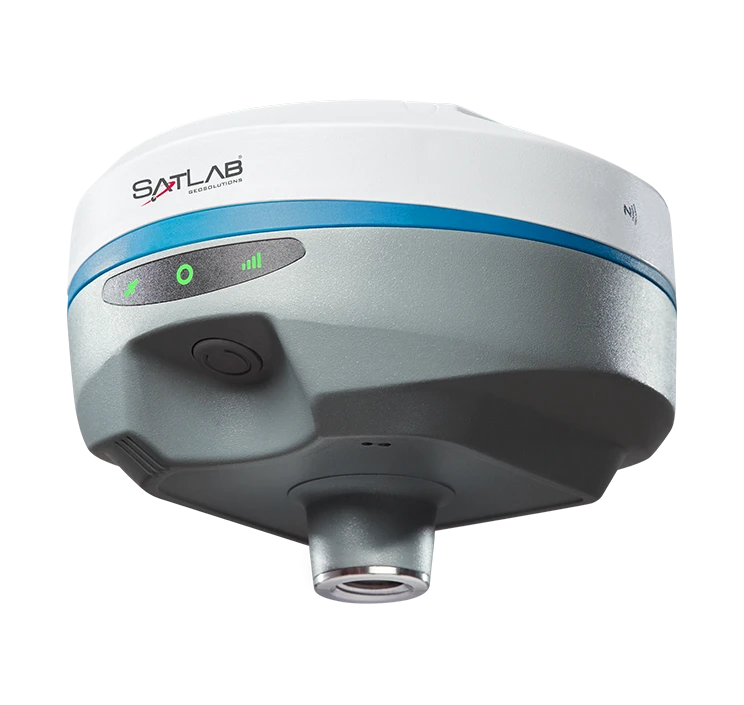

SL7 GNSS RTK System SatLab

Name: SL7 GNSS RTK System SatLab
Brand: SatLab
SKU: B44DC9

SatLab Model: B44DC9 In Stock

(0) 0 Reviews 0 Orders 0 Wish listed

Warranty 1 Year Manufacturer Warranty

Delivery UAE wide delivery

Included Accessories Standard kit as listed in the description

Support Training Calibration and UAE support

Technical Specifications
Reviews

1. Powerful Satellite Tracking and Anti-jamming Capabilities

SatLab’s unique design and self-developed antenna promise a stable and efficient operation. A highly integrated motherboard chip with low power consumption, supporting up to 1408/1760 channels, tracks full constellations and frequencies. The excellent hardware configuration suppresses signal interference and obtains high-quality satellite-tracking data, ensuring performance and accuracy even in complex environments.

2. Visual Navigation Makes Stakeout Easier

Star-level HD camera provides users with immersive 3D visual navigation and stakeout experience. The featured AR stakeout on the Satsurv software provides guidance of the pointing arrow on the real scene and the real-time distance display to users for quickly locating the target point. And the AR function can also be performed in activities such as line stakeout and CAD-based map stakeout. The AR stakeout improves working efficiency by nearly 50% compared with the traditional graphics and text mode stakeout.

3. Accurate and Reliable Tilt Measurement

The portable GNSS receiver SL7 utilizes SatLab’s most advanced tilt measurement technology, and with a built-in 200Hz IMU module and automatic initialization upon turning on can automatically complete the tilt calibration process without waiting for a fixed solution during operation. And it can measure and stakeout with survey-grade accuracy within a tilt compensation range of up to 60°, increasing efficiency by nearly 30%.

4. Longer Battery Life and Better Portability

Optimized the whole structure with new hardware, the portable GNSS receiver weighs only 750g, Its energy-efficient hardware design ensures an extended operational battery life of up to 24 hours, allowing users to enjoy portability without worrying about battery drain.

Applications
